Reverse Engineering

We provide 3D data of your objects by the optical non-contact 3D digitizer “ATOS” for various applications.

Reverse Engineering

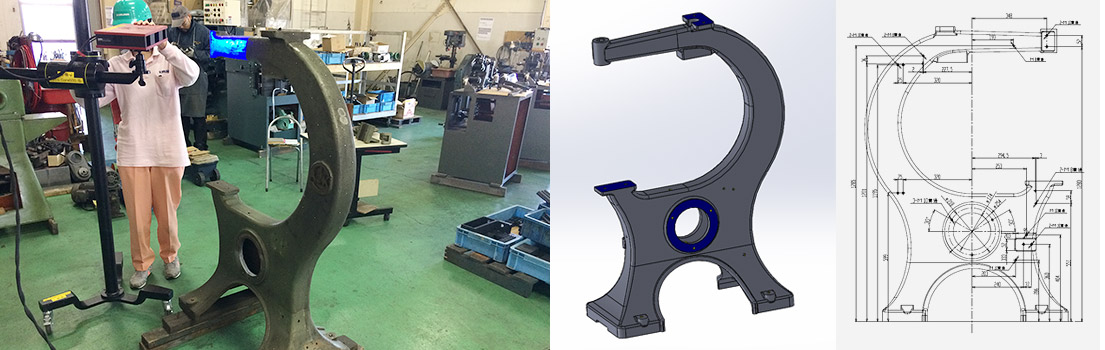

  1. 3D data corresponding to the same form as the actual object in each case is provided. Drawings can also be created from scans.

    Image of content

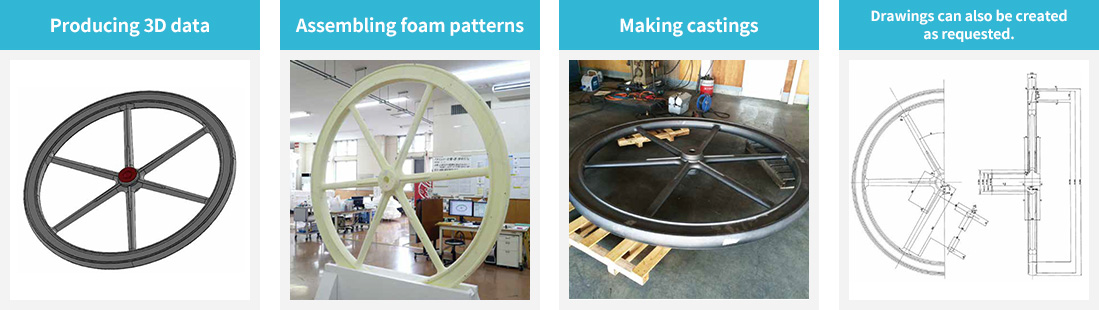

  2. An iron casting of the same form as the actual object in each case is provided.
    Drawings can also be created as requested.

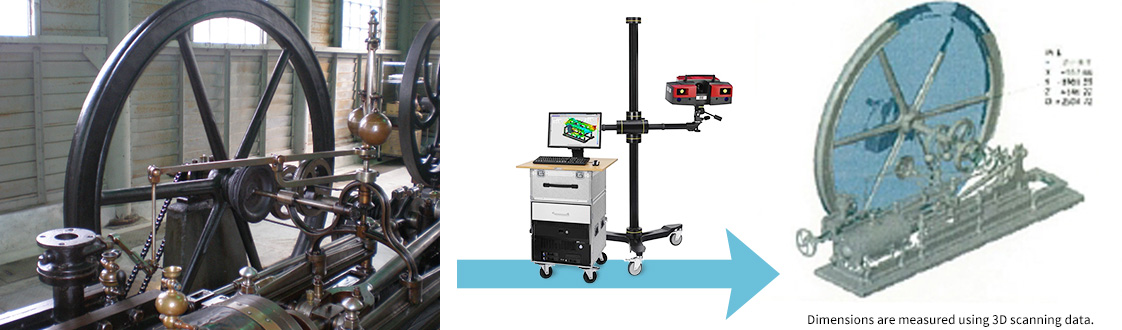

    Supporting efforts to reproduce a Brunat engine at the Tomioka Silk Mill, a World Heritage Site

    Image of content Image of content

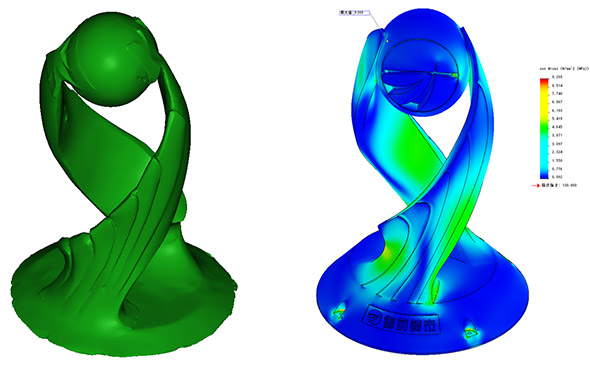

  3. To analyze the structure by CAE

    Image of content

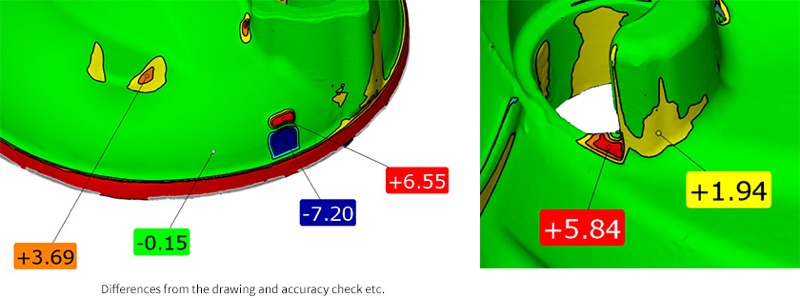

  4. We compare the object with 3D data to find out the difference and accuracy check.

    Image of content

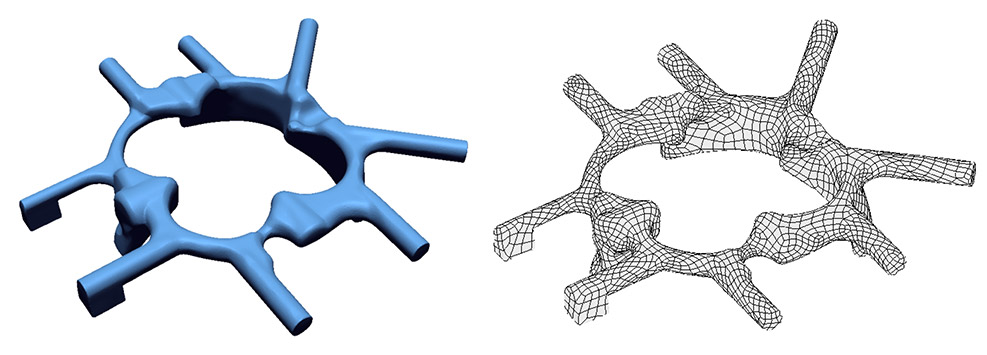

  5. Save the warehouse space through making wooden patterns 3D data base.
    At the same time, you can reproduce the object by Full Mold Casting process.

    Image of content

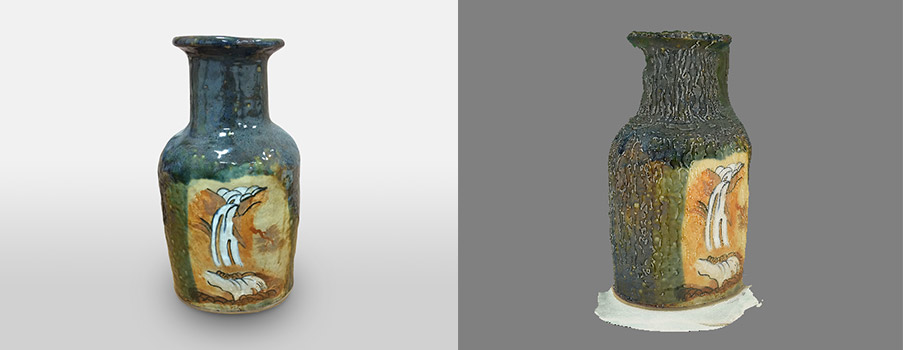

  6. Save the art works and treatments by making them 3D data base.

    Image of content

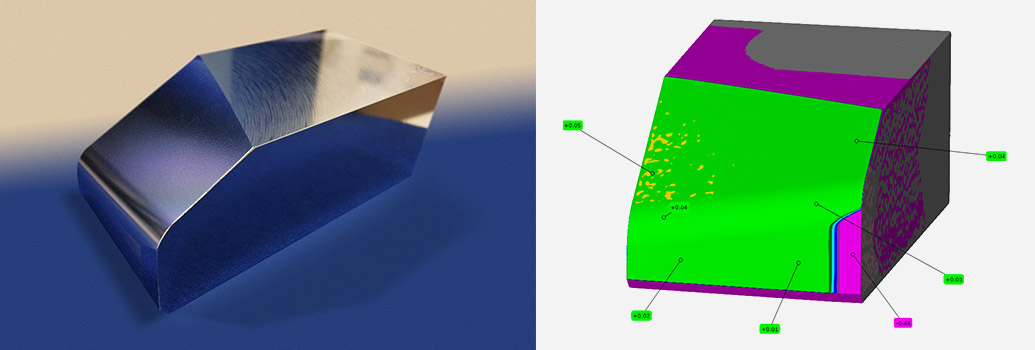

  7. Save the cantt manship in 3D data, and we check the accuracy of cutting tools.

    Image of content
